배경 : 스프링배치 9주차 과제 를 수행하기 위한 정리를 진행함.
참고 : 9주차 교재
(아래 글은 한국 스프링 사용자 모임(KSUG)에서 진행된 스프링 배치 스터디 내용을 정리한 게시글입니다.
DEVOCEAN에 연재 중인 KIDO님의 글을 참고하여 실습한 내용을 기록했습니다.)
https://devocean.sk.com/blog/techBoardDetail.do?ID=167030
[SpringBatch 연재 09] 입맛에 맞는 배치 처리를 위한 Custom ItemReader/ItemWriter 구현방법 알아보기
devocean.sk.com
내용
특이 케이스나, 비즈니스 로직에 맞는 배치를 위해 사용하는 CustomItemReader / CustomItemWriter 에 대해 알아보자.
금주 샘플 예제
- QuerydslPagingItemReader : Querydsl을 이용 -> Paging 하여 데이터베이스 값 읽는
- CustomItemWriter : 타 서비스 호출
참고 github 예제 링크 (프로젝트 구조를 맞추어 진행)
spring-batch-tutorials/06.04.QuerydslPagingItemReaderSample at 10.01.FlowControl · schooldevops/spring-batch-tutorials
Contribute to schooldevops/spring-batch-tutorials development by creating an account on GitHub.
github.com
QuerydslPagingItemReader
AbstractPagingItemReader 를 이용 -> Querydsl을 활용한 ItemReader 사용 가능
Querydsl : SQL과 유사한 쿼리를 자바 코드로 작성할 수 있게 해주는 프레임워크
- JPA 엔티티 추상화 : JPA 엔티티에 의존하지 않고, 추상화된 쿼리를 통해, 코드 유지 관리성 높힘.
QuerydslPagingItemReader 생성
위 파일 개발 전, Querydsl 및 JPA, Q클래스 사용하기 위한 환경 설정 필요
build.gradle
// https://g-db.tistory.com/entry/Spring-Boot-Spring-Boot%EC%97%90%EC%84%9C-JPA-QueryDSL-%EC%A0%81%EC%9A%A9-%EB%B0%A9%EB%B2%95#Gradle%EC%97%90%20QueryDSL%20%EC%9D%98%EC%A1%B4%EC%84%B1%20%EC%B6%94%EA%B0%80-1
// helped by sajacaros
// Querydsl 빌드 옵션 설정
def generated = 'src/main/generated'
// querydsl QClass 파일 생성 위치를 지정
tasks.withType(JavaCompile) {
options.getGeneratedSourceOutputDirectory().set(file(generated))
}
// java source set 에 querydsl QClass 위치 추가
sourceSets {
main.java.srcDirs += [ generated ]
}
// gradle clean 시에 QClass 디렉토리 삭제
clean {
delete file(generated)
}
JPA 사용하기 위한 설정 셋팅 (Entity 등 추가)
Customer.java
package com.ksko.spring_batch.batch_sample.jobs.models;
import jakarta.persistence.*;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
@Entity
@Table(name = "customer")
@NoArgsConstructor
@AllArgsConstructor
@Data
public class Customer {
@Id
@GeneratedValue(strategy = GenerationType.AUTO)
private Long id;
private String name;
private int age;
private String gender;
private String grade; //준수님 DB 깔 맞추기위해 추가
}
QuerydslPagingItemReader.java
package com.ksko.spring_batch.batch_sample.jobs.jpa.reader;
import com.querydsl.jpa.impl.JPAQuery;
import com.querydsl.jpa.impl.JPAQueryFactory;
import jakarta.persistence.EntityManager;
import jakarta.persistence.EntityManagerFactory;
import org.springframework.batch.item.database.AbstractPagingItemReader;
import org.springframework.util.ClassUtils;
import org.springframework.util.CollectionUtils;
import java.util.List;
import java.util.concurrent.CopyOnWriteArrayList;
import java.util.function.Function;
public class QuerydslPagingItemReader<T> extends AbstractPagingItemReader<T> {
//어떤 순서로 개발해야하는지 음 ㅠㅠ 쉽지않네유
//AbstractPagingItemReader -> 어댑터 패턴 (호환되지 않는 인터페이스를 가진 객체들이 함께 작동할 수 있도록 해주는 구조적 패턴)
//4 (EntityManager 사용을 위한 data jpa 의존성 주입)
private EntityManager em;
private final Function<JPAQueryFactory, JPAQuery<T>> querySupplier;
private final Boolean alwaysReadFromZero;
public QuerydslPagingItemReader(EntityManagerFactory entityManagerFactory, Function<JPAQueryFactory, JPAQuery<T>> querySupplier, int chunkSize) {
this(ClassUtils.getShortName(QuerydslPagingItemReader.class), entityManagerFactory, querySupplier, chunkSize, false);
}
public QuerydslPagingItemReader(String name, EntityManagerFactory entityManagerFactory, Function<JPAQueryFactory, JPAQuery<T>> querySupplier, int chunkSize, Boolean alwaysReadFromZero) {
super.setPageSize(chunkSize); //페이징 처리 위한 페이지 크기
setName(name); //itemReader 구분 위한 이름
this.querySupplier = querySupplier;
this.em = entityManagerFactory.createEntityManager();
this.alwaysReadFromZero = alwaysReadFromZero; //0부터 페이징 읽을지 여부 지정
}
@Override
protected void doClose() throws Exception {
if(em != null) {
em.close();
}
super.doClose();
}
@Override
protected void doReadPage() {
//1
initQueryResult();
//3 (사용 위한 querydsl 의존성 주입 필요)
JPAQueryFactory jpaQueryFactory = new JPAQueryFactory(em);
long offset = 0;
if (alwaysReadFromZero) {
offset = (long) getPage() * getPageSize();
}
JPAQuery<T> query = querySupplier.apply(jpaQueryFactory).offset(offset).limit(getPageSize());
List<T> queryResult = query.fetch();
for (T entity: queryResult) {
em.detach(entity);
results.add(entity);
}
}
private void initQueryResult() {
//2
if (CollectionUtils.isEmpty(results)) {
results = new CopyOnWriteArrayList<>();
} else {
results.clear();
}
}
}
참고
AbstractPagingItemReader 는 어댑터 패턴
[참고] 어댑터 패턴이란?
어댑터 패턴은 호환되지 않는 인터페이스를 가진 객체들이 협업할 수 있도록 하는 구조적 디자인 패턴입니다. 이 패턴은 기존 클래스의 인터페이스를 클라이언트가 기대하는 다른 인터페이스로 변환하여, 코드 수정 없이 기존 클래스를 재사용할 수 있게 합니다.
💠 어댑터(Adaptor) 패턴 - 완벽 마스터하기
Adaptor Pattern 어댑터 패턴(Adaptor Pattern) 이란 이름 그대로 클래스를 어댑터로서 사용되는 구조 패턴이다. 어댑터는 우리 주변에도 많이 볼 수 있는 것으로서, 대표적으로 110V 전용 가전제품에 220V
inpa.tistory.com
QuerydslPagingTiemReaderBuilder.java - 생성자가 복잡해서 빌더를 생성했다고 함.. (음 ㅠㅠ)
package com.ksko.spring_batch.batch_sample.jobs.jpa.reader;
import com.querydsl.jpa.impl.JPAQuery;
import com.querydsl.jpa.impl.JPAQueryFactory;
import jakarta.persistence.EntityManagerFactory;
import org.springframework.util.ClassUtils;
import java.util.function.Function;
public class QuerydslPagingItemReaderBuilder<T> {
private EntityManagerFactory entityManagerFactory;
private Function<JPAQueryFactory, JPAQuery<T>> querySupplier;
private int chunkSize = 10;
private String name;
private Boolean alwaysReadFromZero;
public QuerydslPagingItemReaderBuilder<T> entityManagerFactory(EntityManagerFactory entityManagerFactory) {
this.entityManagerFactory = entityManagerFactory;
return this;
}
public QuerydslPagingItemReaderBuilder<T> querySupplier(Function<JPAQueryFactory, JPAQuery<T>> querySupplier) {
this.querySupplier = querySupplier;
return this;
}
public QuerydslPagingItemReaderBuilder<T> chunkSize(int chunkSize) {
this.chunkSize = chunkSize;
return this;
}
public QuerydslPagingItemReaderBuilder<T> name(String name) {
this.name = name;
return this;
}
public QuerydslPagingItemReaderBuilder<T> alwaysReadFromZero(Boolean alwaysReadFromZero) {
this.alwaysReadFromZero = alwaysReadFromZero;
return this;
}
public QuerydslPagingItemReader<T> build() {
if (name == null) {
this.name = ClassUtils.getShortName(QuerydslPagingItemReader.class);
}
if (this.entityManagerFactory == null) {
throw new IllegalArgumentException("EntityManagerFactory can not be null.!");
}
if (this.querySupplier == null) {
throw new IllegalArgumentException("Function<JPAQueryFactory, JPAQuery<T>> can not be null.!");
}
if (this.alwaysReadFromZero == null) {
alwaysReadFromZero = false;
}
return new QuerydslPagingItemReader<>(this.name, entityManagerFactory, querySupplier, chunkSize, alwaysReadFromZero);
}
}
QueryDSLPagingReaderJobConfig.java - 실행 위한
package com.ksko.spring_batch.batch_sample.jobs.jpa;
import com.ksko.spring_batch.batch_sample.jobs.jpa.reader.QuerydslPagingItemReader;
import com.ksko.spring_batch.batch_sample.jobs.jpa.reader.QuerydslPagingItemReaderBuilder;
import com.ksko.spring_batch.batch_sample.jobs.models.Customer;
import com.ksko.spring_batch.batch_sample.jobs.models.QCustomer;
import com.ksko.spring_batch.batch_sample.jobs.mybatis.CustomerItemProcessor;
import jakarta.persistence.EntityManagerFactory;
import lombok.extern.slf4j.Slf4j;
import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.job.builder.JobBuilder;
import org.springframework.batch.core.launch.support.RunIdIncrementer;
import org.springframework.batch.core.repository.JobRepository;
import org.springframework.batch.core.step.builder.StepBuilder;
import org.springframework.batch.item.file.FlatFileItemWriter;
import org.springframework.batch.item.file.builder.FlatFileItemWriterBuilder;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.FileSystemResource;
import org.springframework.transaction.PlatformTransactionManager;
import javax.sql.DataSource;
@Slf4j
@Configuration
public class QueryDSLPagingReaderJobConfig {
/**
* CHUNK 크기를 지정한다.
*/
public static final int CHUNK_SIZE = 2;
public static final String ENCODING = "UTF-8";
public static final String QUERYDSL_PAGING_CHUNK_JOB = "QUERYDSL_PAGING_CHUNK_JOB";
@Autowired
DataSource dataSource;
@Autowired
EntityManagerFactory entityManagerFactory;
// @Bean
// public QuerydslPagingItemReader<Customer> customerQuerydslPagingItemReader() throws Exception {
//
// Function<JPAQueryFactory, JPAQuery<Customer>> query = jpaQueryFactory -> jpaQueryFactory.select(QCustomer.customer).from(QCustomer.customer);
//
// return new QuerydslPagingItemReader<>("customerQuerydslPagingItemReader", entityManagerFactory, query, CHUNK_SIZE, false);
// }
@Bean
public QuerydslPagingItemReader<Customer> customerQuerydslPagingItemReader() {
return new QuerydslPagingItemReaderBuilder<Customer>()
.name("customerQuerydslPagingItemReader")
.entityManagerFactory(entityManagerFactory)
.chunkSize(2)
.querySupplier(jpaQueryFactory -> jpaQueryFactory.select(QCustomer.customer).from(QCustomer.customer).where(QCustomer.customer.age.gt(20)))
.build();
}
@Bean
public FlatFileItemWriter<Customer> customerQuerydslFlatFileItemWriter() {
return new FlatFileItemWriterBuilder<Customer>()
.name("customerQuerydslFlatFileItemWriter")
.resource(new FileSystemResource("./output/customer_new_v2.csv"))
.encoding(ENCODING)
.delimited().delimiter("\t")
.names("Name", "Age", "Gender")
.build();
}
@Bean
public Step customerQuerydslPagingStep(JobRepository jobRepository, PlatformTransactionManager transactionManager) throws Exception {
log.info("------------------ Init customerQuerydslPagingStep -----------------");
return new StepBuilder("customerJpaPagingStep", jobRepository)
.<Customer, Customer>chunk(CHUNK_SIZE, transactionManager)
.reader(customerQuerydslPagingItemReader())
.processor(new CustomerItemProcessor())
.writer(customerQuerydslFlatFileItemWriter())
.build();
}
//step의 경우
@Bean
public Job customerJpaPagingJob(Step customerJdbcPagingStep, JobRepository jobRepository) {
log.info("------------------ Init customerJpaPagingJob -----------------");
return new JobBuilder(QUERYDSL_PAGING_CHUNK_JOB, jobRepository)
.incrementer(new RunIdIncrementer())
.start(customerJdbcPagingStep)
.build();
}
}

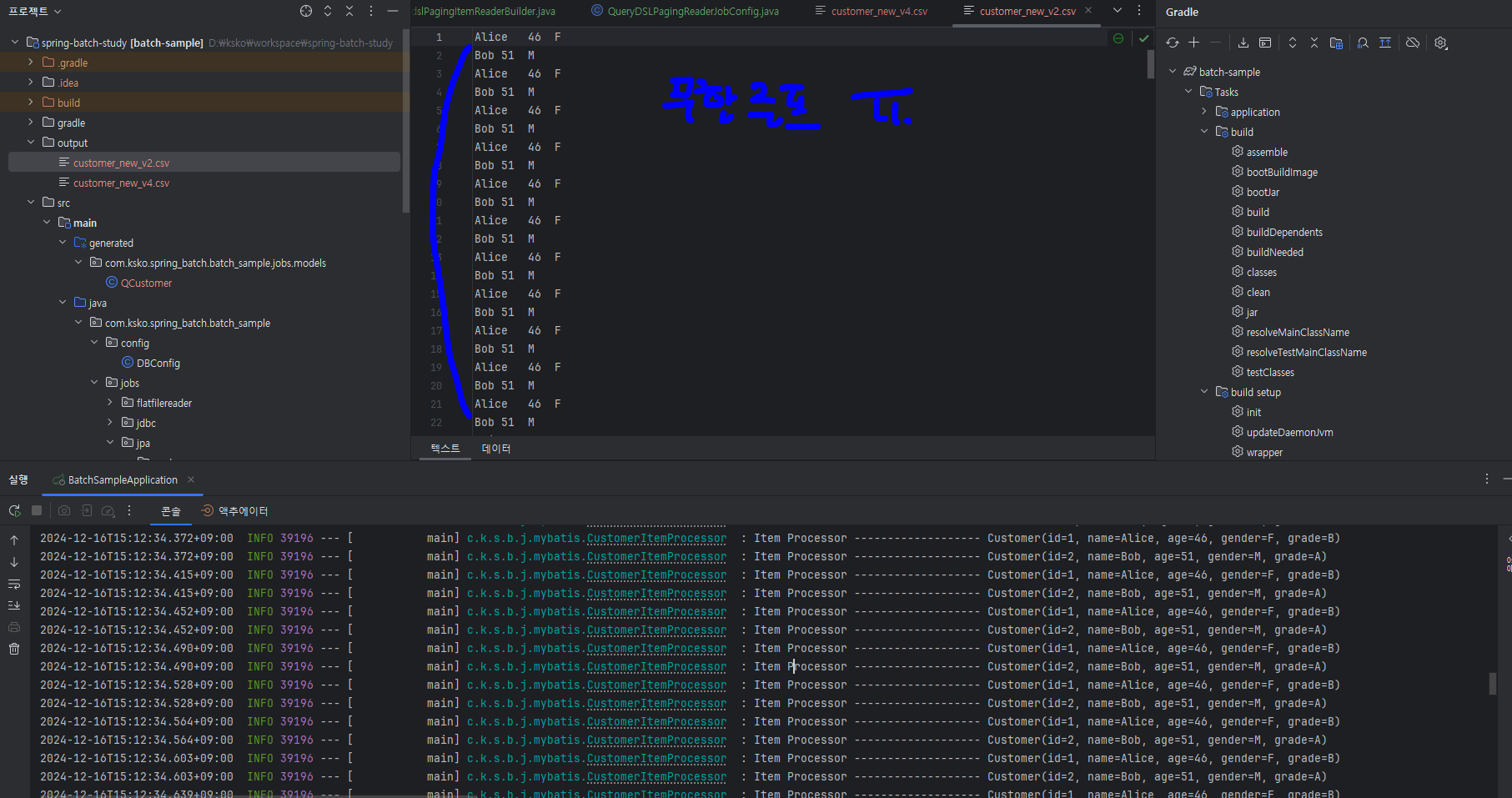

실행 결과 - 이게 맞나요? ㅠㅠ
CustomItemWriter
기본 ItemWriter 클래스로 제공되지 않는 특정 기능 구현시 사용
구성 요소
- ItemWriter 인터페이스 인 write() 메소드 구현 --> 해당 메소드 내 데이터 처리 로직 구현
- 필요한 라이브러리 및 객체 선언하여 구현 가능
장점
- 기본 ItemWriter 클래스로 제공되지 않는 특정 기능 구현 가능 (유연성)
- 다양한 방식으로 데이터 처리 확장 가능 (확장성)
- 데이터 처리 과정을 완벽하게 제어 가능 (제어 가능성)
단점
- 기본 ItemWriter 클래스보다 개발 과정 복잡 (개발 복잡성)
- 테스트 작성이 어렵다
- 문제 발생시 디버깅이 어려울 수 있다.
커스텀 Writer 예제로 개념 이해하는 방식으로 진행
(데보션 블로그 소스만으로는 이해가 어려워 ㅠㅠ)
CustomService.java
package com.ksko.spring_batch.batch_sample.jobs.mybatis;
import com.ksko.spring_batch.batch_sample.jobs.models.Customer;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;
import java.util.Map;
@Slf4j
@Service
public class CustomService {
public Map<String, String> processToOtherService(Customer item) {
log.info("Call API to OtherService....");
return Map.of("code", "200", "message", "OK");
}
}
CustomItemWriter.java
package com.ksko.spring_batch.batch_sample.jobs.mybatis;
import com.ksko.spring_batch.batch_sample.jobs.models.Customer;
import lombok.extern.slf4j.Slf4j;
import org.springframework.batch.item.Chunk;
import org.springframework.batch.item.ItemWriter;
import org.springframework.stereotype.Component;
@Slf4j
@Component
public class CustomItemWriter implements ItemWriter<Customer> {
private final CustomService customService;
public CustomItemWriter(CustomService customService) {
this.customService = customService;
}
@Override
public void write(Chunk<? extends Customer> chunk) throws Exception {
for (Customer customer : chunk) {
log.info("Call Porcess in CustomItemWriter...");
customService.processToOtherService(customer);
}
}
}
기존 구현된 부분에서 위 writer 실행하기 위해 기존 구현된 mybatis writer 활용
MybatisItemWriterJobConfig.java
2024-12-16T16:42:15.435+09:00 INFO 39012 --- [ main] j.LocalContainerEntityManagerFactoryBean : Initialized JPA EntityManagerFactory for persistence unit 'default'
2024-12-16T16:42:15.445+09:00 WARN 39012 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'entityManagerFactory' of type [org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying). Is this bean getting eagerly injected into a currently created BeanPostProcessor [jobRegistryBeanPostProcessor]? Check the corresponding BeanPostProcessor declaration and its dependencies.
2024-12-16T16:42:15.446+09:00 WARN 39012 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'entityManagerFactory' of type [jdk.proxy2.$Proxy91] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying). Is this bean getting eagerly injected into a currently created BeanPostProcessor [jobRegistryBeanPostProcessor]? Check the corresponding BeanPostProcessor declaration and its dependencies.
2024-12-16T16:42:15.451+09:00 WARN 39012 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'transactionManager' of type [org.springframework.orm.jpa.JpaTransactionManager] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying). Is this bean getting eagerly injected into a currently created BeanPostProcessor [jobRegistryBeanPostProcessor]? Check the corresponding BeanPostProcessor declaration and its dependencies.
2024-12-16T16:42:15.469+09:00 WARN 39012 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'org.springframework.boot.autoconfigure.batch.BatchAutoConfiguration$SpringBootBatchConfiguration' of type [org.springframework.boot.autoconfigure.batch.BatchAutoConfiguration$SpringBootBatchConfiguration] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying). The currently created BeanPostProcessor [jobRegistryBeanPostProcessor] is declared through a non-static factory method on that class; consider declaring it as static instead.
2024-12-16T16:42:15.742+09:00 INFO 39012 --- [ main] c.k.s.b.j.m.MybatisItemWriterJobConfig : ------------------ Init flatFileStep -----------------
2024-12-16T16:42:15.789+09:00 INFO 39012 --- [ main] c.k.s.b.j.m.MybatisItemWriterJobConfig : ------------------ Init flatFileJob -----------------
2024-12-16T16:42:15.977+09:00 INFO 39012 --- [ main] c.k.s.b.BatchSampleApplication : Started BatchSampleApplication in 3.837 seconds (process running for 4.528)
2024-12-16T16:42:15.980+09:00 INFO 39012 --- [ main] o.s.b.a.b.JobLauncherApplicationRunner : Running default command line with: []
2024-12-16T16:42:16.264+09:00 INFO 39012 --- [ main] o.s.b.c.l.support.SimpleJobLauncher : Job: [SimpleJob: [name=MY_BATIS_ITEM_WRITER]] launched with the following parameters: [{'run.id':'{value=1, type=class java.lang.Long, identifying=true}'}]
2024-12-16T16:42:16.456+09:00 INFO 39012 --- [ main] o.s.batch.core.job.SimpleStepHandler : Executing step: [flatFileStep]
2024-12-16T16:42:16.544+09:00 INFO 39012 --- [ main] c.k.s.b.jobs.mybatis.CustomItemWriter : Call Porcess in CustomItemWriter...
2024-12-16T16:42:16.544+09:00 INFO 39012 --- [ main] c.k.s.b.jobs.mybatis.CustomService : Call API to OtherService....
2024-12-16T16:42:16.544+09:00 INFO 39012 --- [ main] c.k.s.b.jobs.mybatis.CustomItemWriter : Call Porcess in CustomItemWriter...
2024-12-16T16:42:16.544+09:00 INFO 39012 --- [ main] c.k.s.b.jobs.mybatis.CustomService : Call API to OtherService....
2024-12-16T16:42:16.544+09:00 INFO 39012 --- [ main] c.k.s.b.jobs.mybatis.CustomItemWriter : Call Porcess in CustomItemWriter...
2024-12-16T16:42:16.544+09:00 INFO 39012 --- [ main] c.k.s.b.jobs.mybatis.CustomService : Call API to OtherService....
2024-12-16T16:42:16.599+09:00 INFO 39012 --- [ main] o.s.batch.core.step.AbstractStep : Step: [flatFileStep] executed in 142ms
2024-12-16T16:42:16.705+09:00 INFO 39012 --- [ main] o.s.b.c.l.support.SimpleJobLauncher : Job: [SimpleJob: [name=MY_BATIS_ITEM_WRITER]] completed with the following parameters: [{'run.id':'{value=1, type=class java.lang.Long, identifying=true}'}] and the following status: [COMPLETED] in 390ms
2024-12-16T16:42:16.710+09:00 INFO 39012 --- [ionShutdownHook] j.LocalContainerEntityManagerFactoryBean : Closing JPA EntityManagerFactory for persistence unit 'default'
2024-12-16T16:42:16.711+09:00 INFO 39012 --- [ionShutdownHook] com.zaxxer.hikari.HikariDataSource : HikariPool-1 - Shutdown initiated...
2024-12-16T16:42:18.523+09:00 INFO 39012 --- [ionShutdownHook] com.zaxxer.hikari.HikariDataSource : HikariPool-1 - Shutdown completed.
실행은 된거 같은데 ㅠㅠ
나중에 다시 봐야겠다 ㅠㅠ
우선 9주차 늦게나마 끝 ㅠㅠ
728x90
